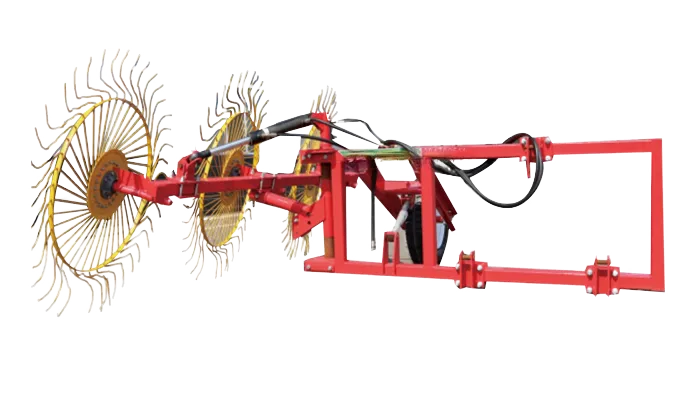

9FZ-2.0 Finger Wheel Rake for Tractor

Introduction to the 9FZ-2.0 Finger Wheel Rake for Tractor

The 9FZ-2.0 Finger Wheel Rake for Tractor stands as a vital piece of agricultural equipment engineered for efficient forage management. Produced by Netherlands Square Baler Co., Ltd., this finger wheel rake excels in tedding and raking operations, facilitating faster drying of cut hay and uniform windrows for subsequent baling. With a mounted or suspended hitch type, it seamlessly attaches to tractors, offering flexibility in field navigation. The hydraulic folding mechanism allows compact transport, reducing downtime between fields.

Featuring 3 finger wheels with a diameter of Φ1500 mm and 120 tines (40 per wheel), the rake covers a tedding width of 2 m, making it suitable for medium-scale operations. Requiring a matched power range of ≥25.73 kW, it operates at speeds of 7-10 km/h, ensuring gentle handling of crops to preserve quality. Dimensions in working state measure 3500 × 3500 × 1500 mm, with a total weight of 372 kg, balancing maneuverability and stability. The product adheres to JB/T7766-2011 standards, guaranteeing reliability.

For compatible tractor models, this forage raking machine pairs effectively with entry-level units like John Deere 5E Series, Case IH Farmall 35-55, or Massey Ferguson 2600 Series, which provide sufficient power for smooth performance. Hydraulic requirements involve a standard single outlet at 1500-2500 PSI, enabling quick folding. Tines are made from high-strength spring steel, resistant to wear in varied terrains. Warranty covers 1 year for structural and components, with no electrical system needed as it’s hydraulic-only.

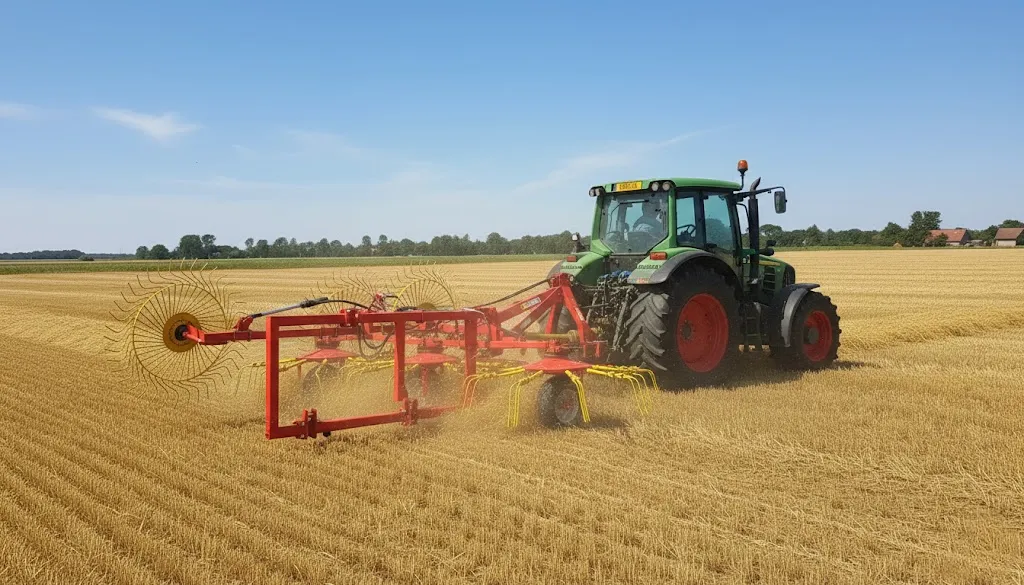

In a case study from a dairy farm in the Midwest USA, the finger wheel rake was deployed post-mowing to spread alfalfa evenly, reducing drying time by 20% and improving bale quality when followed by baling. Farmers noted its lightweight design minimized soil compaction, enhancing long-term field health.

Key Features and Functionality of the Finger Wheel Rake

The finger wheel rake’s primary function is to aerate and spread cut forage, accelerating moisture evaporation for better preservation. As a tractor-mounted rake, its 3 wheels rotate independently, gently lifting and flipping material without excessive ground contact, ideal for delicate crops like legumes. The hydraulic folding allows wheels to collapse inward, narrowing the unit for road transport or storage.

Details include adjustable tine angles for customized raking intensity, ensuring optimal windrow formation. The machine’s low weight of 372 kg reduces tractor strain, while the 2 m working width covers substantial ground efficiently. In application areas, it thrives in hay production, pasture management, and silage preparation, supporting sustainable practices by minimizing crop loss.

Qualifications encompass rigorous testing under JB/T7766-2011, with certifications for durability. Netherlands Square Baler Co., Ltd. ensures each unit undergoes quality checks, from tine welding to hydraulic seals. For best finger wheel rake for small farms, this model offers affordability without compromising performance.

A vineyard operation in California utilized the rake for grape leaf residue management, creating neat rows that facilitated mulching, boosting soil fertility and reducing weed growth over multiple seasons.

Product Details and Application Areas

Examining product details, the 120 tines are spring-loaded to follow terrain contours, preventing breakage on rocky ground. The Φ1500 mm wheel diameter provides ample reach, while the hydraulic system integrates with tractor controls for one-person operation. Application domains extend to livestock feed preparation, where raked forage dries uniformly, enhancing nutritional value when baled.

In crop rotation systems, the rake aids residue incorporation, promoting soil health. For high-efficiency finger wheel rake for hay, its speed range supports timely operations during narrow weather windows. Netherlands Square Baler Co., Ltd. emphasizes ergonomic design, with minimal vibration for operator comfort.

Product qualifications include compliance with international safety standards, backed by in-house testing labs. In a wheat farm case in Kansas, the rake processed stubble post-harvest, forming windrows that reduced erosion and prepared fields for planting, yielding 15% better soil moisture retention.

Extending to global use, the machine’s suspended hitch adapts to uneven fields, common in hilly regions. As a durable finger wheel rake for large fields, it handles high-volume tedding without fatigue.

Netherlands Square Baler Co., Ltd.: Pioneering Agricultural Solutions

Netherlands Square Baler Co., Ltd. is a renowned finger wheel rake supplier committed to innovation in agricultural machinery. With a state-of-the-art facility and expert team, we produce reliable equipment like round hay balers for high-density compression, square balers for rectangular formats, mowers for clean cutting, kidney bean pullers for niche harvesting, round bale pickup vehicles for transport, and feed crushers for nutrition processing. Our focus on quality and affordability makes us a trusted hay tedder manufacturer, offering products that enhance farm productivity worldwide.

User Feedback from Around the World

From New York: “This finger wheel rake spreads alfalfa nicely on my fields; it’s light and folds easy for transport, though I adjust tines for wet spots.”

From Berlin: “Used it for wheat residue; the hydraulic folding saves time, and it covers ground well without much drag on the tractor.”

From Rio de Janeiro: “Handles corn stalks okay in humid weather; the tines are sturdy, but I clean them often to avoid buildup.”

From Sydney: “Good for grass in dry pastures; it aerates evenly, though speed needs watching on uneven land.”

From Johannesburg: “Tackles dusty fields for livestock hay; simple to hitch, and the wheels hold up through rough seasons.”
