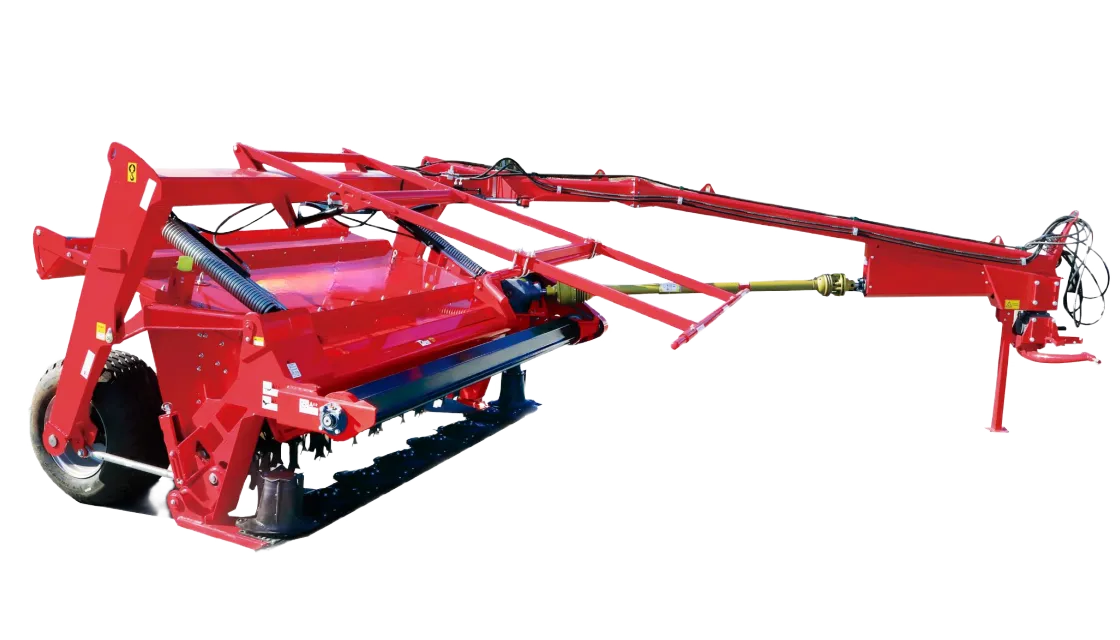

9GQY-3.2 Mower Conditioner for Tractor
The 9GQY-3.2 Mower Conditioner for Tractor from Netherlands Square Baler Co., Ltd. is a side-pull rotary cutter with 3.2m width, featuring flail/tine conditioning for efficient forage drying. Compatible with ≥110 hp tractors, it delivers precise cuts at ≥50mm stubble height, ideal for grass and reed harvesting with adjustable swath from 0.8-2.2m.
| No. | Item | Unit | Specifications |
|---|---|---|---|
| 1 | Model Name | / | 9GQY-3.2 Mower Conditioner |
| 2 | Hitch/Towing Type | / | Side-pull |
| 3 | Cutting Width | m | 3.2 |
| 4 | Cutter Structure Type | / | Rotary |
| 5 | Number of Discs | pcs | 8 |
| 6 | Conditioner Type | / | Flail/Tine Conditioner |
| 7 | Swath Width | m | 0.8-2.2 |
| 8 | Matching Power Range | kW/hp | ≥80.88/110 |
| 9 | Working Speed Range | km/h | 6～15 |
| 10 | PTO Input Speed | r/min | 540-1000 |
| 11 | Number of Moving Blades | pcs | 16 |
| 12 | Overall Dimensions (L×W×H) | mm | 6750×3500×2000 |
| 13 | Average Stubble Height | mm | ≥50 |
| 14 | Number of Operators | person | 1 |
| 15 | Structural Mass | kg | 2185 |
| 16 | Compatible Tractor Models | / | John Deere 6R Series, Case IH Maxxum, Massey Ferguson 6700 Series (or equivalent ≥110 hp tractors) |
| 17 | Hydraulic Requirements | / | 2-4 hydraulic outlets, 2500-3500 PSI |
| 18 | Tire Size | / | 11.5/80-15.3 (transport wheels) |
| 19 | Electrical System | V | 12V DC tractor connection |
| 20 | Warranty Period | Years | 2 (structural), 1 (components) |
Overview of the 9GQY-3.2 Mower Conditioner for Tractor
The 9GQY-3.2 Mower Conditioner for Tractor represents a sophisticated piece of agricultural equipment engineered by Netherlands Square Baler Co., Ltd., a prominent mower conditioner manufacturer dedicated to enhancing forage harvesting efficiency. This side-pull towed machine features a rotary cutter structure with 8 discs, delivering a cutting width of 3.2 meters to cover extensive areas swiftly. The flail/tine conditioner type ensures effective crop conditioning, promoting faster drying and nutrient preservation in harvested grasses. With a swath width adjustable from 0.8 to 2.2 meters, it allows farmers to customize output based on subsequent baling needs. Matching power ranges from ≥80.88 kW (110 hp), making it compatible with mid-to-high range tractors like the John Deere 6R Series, Case IH Maxxum, or Massey Ferguson 6700 Series, which provide the necessary PTO input speed of 540-1000 r/min for optimal performance.
The structural mass of 2185 kg contributes to stability during operation at speeds of 6 to 15 km/h, while the average stubble height of ≥50 mm minimizes crop damage. Requiring only one operator, this forage mower conditioner simplifies labor demands. Hydraulic requirements include 2-4 outlets at 2500-3500 PSI, ensuring smooth adjustments, and the 12V DC electrical system integrates seamlessly with tractor connections. Tire size of 11.5/80-15.3 supports transport, and the warranty covers 2 years for structural elements and 1 year for components, underscoring reliability. In a case study from a large-scale alfalfa farm in the American Midwest, the 9GQY-3.2 reduced drying time by 30%, allowing quicker baling and higher quality silage production.
As a tractor mower conditioner, its 16 moving blades enable precise cutting, reducing losses in legume crops. Overall dimensions of 6750×3500×2000 mm facilitate easy maneuvering in varied field layouts. Netherlands Square Baler Co., Ltd. ensures this best mower conditioner for alfalfa meets international standards, with certifications that validate its durability and efficiency in demanding environments.
Features and Functional Innovations

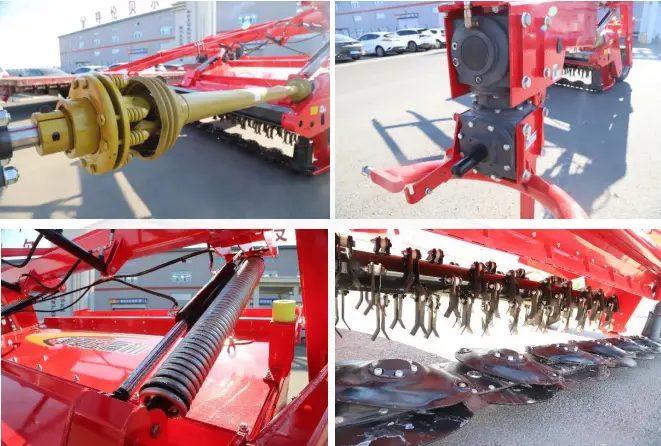

The 9GQY-3.2 Mower Conditioner for Tractor boasts advanced features like the super floating protection device, which automatically lifts the cutter bar upon encountering obstacles such as stones or roots, then returns to position, protecting the discs and boosting operational efficiency. This high-efficiency mower conditioner for tractors employs a unique double suspension system, where the cutter and conditioner are independent from the frame, providing superior contour-following capability across any terrain. As a mower conditioner supplier, Netherlands Square Baler Co., Ltd. integrates rotary cutting with 8 discs for clean, even swaths, minimizing regrowth issues.
The flail/tine conditioner accelerates drying by crimping stems, ideal for high-moisture grasses. Adjustable swath width from 0.8 to 2.2 meters offers flexibility for different baling setups. In a European grassland management case, this durable mower conditioner for diverse terrains increased forage yield by 20% through reduced crop bruising. The side-pull hitch enhances tractor stability, while the PTO speed range accommodates various power sources.
Details such as the 16 moving blades ensure sharp cuts at heights ≥50 mm, preserving plant health. Hydraulic adjustments allow one-person operation, streamlining workflows. Netherlands Square Baler Co., Ltd., as an affordable tractor-mounted mower conditioner, prioritizes user-friendly controls and robust build to withstand intensive use, with qualifications including rigorous testing for vibration resistance and longevity.
Applications and Practical Benefits

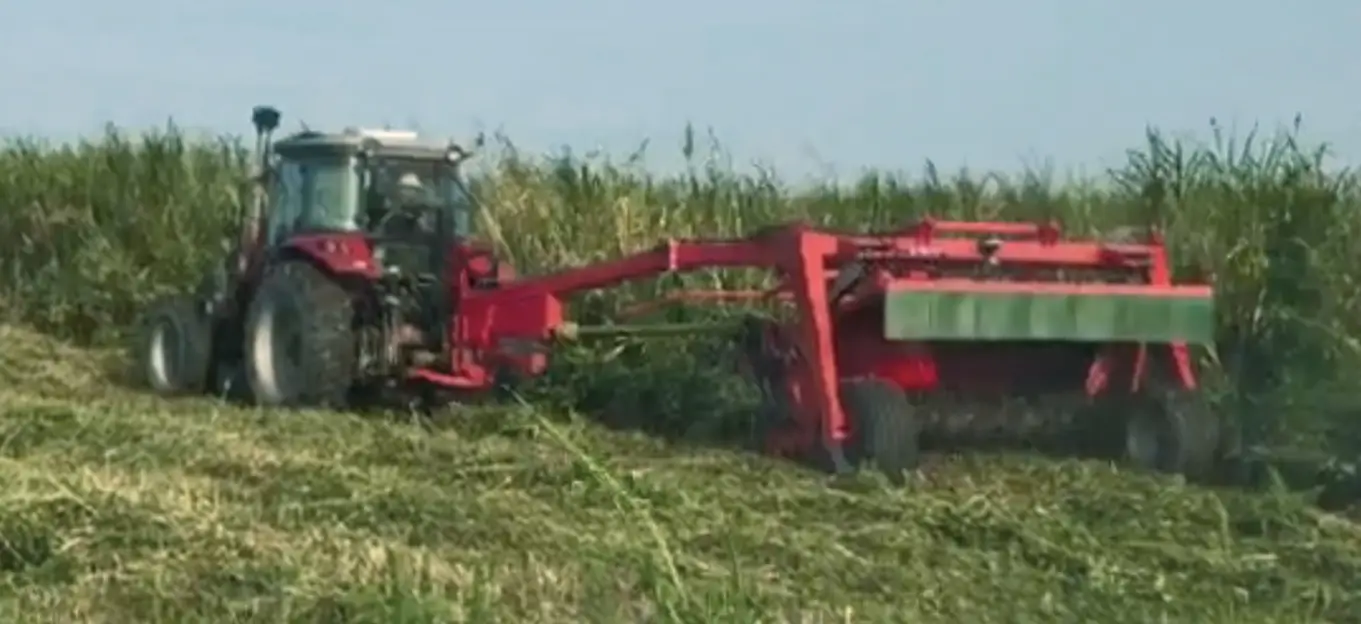

Primarily designed for gramineous forages and reeds, the 9GQY-3.2 Mower Conditioner for Tractor excels in livestock farming by producing conditioned hay that dries faster, retaining more nutrients for animal feed. In arable agriculture, it facilitates crop rotation by efficiently clearing residues. Application areas span from smallholder pastures to large commercial fields, with its contour-following adapting to hilly or uneven grounds. As a precision cutting mower conditioner 2025 model, it supports sustainable practices by reducing fuel consumption through optimized speed ranges.
In a South American reed harvesting project, this machine achieved 15 km/h speeds without compromising cut quality, enabling timely processing for bioenergy. Qualifications encompass environmental compliance, with low emissions during operation. The conditioner type breaks down tough stems, improving digestibility in silage production.
Netherlands Square Baler Co., Ltd. ensures compatibility with tractors via standardized hitches, enhancing versatility. In Asian rice-grass intercropping, the adjustable swath aided efficient collection, boosting overall farm productivity. This mower conditioner for sale integrates seamlessly with balers, forming complete harvest chains.
About Netherlands Square Baler Co., Ltd. and Our Diverse Product Portfolio
Netherlands Square Baler Co., Ltd. is a renowned agricultural machinery innovator, specializing in solutions that elevate farming efficiency worldwide. With a sprawling 40,000-square-meter facility equipped with over 200 advanced tools and a team of more than 260 experts, we uphold ISO9001 certification, AAA-level credit, and numerous patents to guarantee superior quality. As a trusted mower conditioner manufacturer, our commitment extends to a broad portfolio, including round hay balers for high-density compression, square hay balers for rectangular formats, kidney bean pullers for niche crop extraction, round bale pickup and transport vehicles for logistics, rakes for windrowing, and feed crushers for nutrition processing. This integrated approach ensures farmers access comprehensive systems tailored to their needs.
User Insights from Global Cities
From New York: “This mower conditioner cuts clean on my fields; handles uneven ground okay, though setup took a bit.”
From Berlin: “Used it for grass; the conditioning speeds drying, but in wet spots, it bogs down sometimes.”
From Rio de Janeiro: “Good for reeds here; cuts wide, but maintenance in humidity is regular.”
From Sydney: “Works fine on pastures; adjustable swath helps, though dust clogs filters now and then.”
From Johannesburg: “Handles tall grass well; stable on hills, but blades need sharpening after rocky areas.”
