9LZ-6.0 Finger Wheel Rake for Tractor

Introduction to the 9LZ-6.0 Finger Wheel Rake for Tractor

The 9LZ-6.0 Finger Wheel Rake for Tractor represents a significant advancement in forage handling equipment, designed to streamline post-harvest operations in agricultural settings. As a finger wheel rake, this machine is engineered to gather, aerate, and form windrows from cut grass, straw, or other crop residues with exceptional efficiency. Produced by Netherlands Square Baler Co., Ltd., a prominent hay rake manufacturer, this model features a trailed linkage type that allows easy attachment to tractors, ensuring minimal setup time and maximum field mobility. Its structural type as a finger wheel configuration provides gentle handling of materials, preserving quality while covering a raking width of 6 meters.

The matched power requirement of at least 25.73 kW makes it compatible with a range of tractors, including mid-sized models like the John Deere 5000 Series, Case IH Puma, or Massey Ferguson 5700 Series, which offer the necessary horsepower for optimal performance. Hydraulic requirements involve standard 1-2 outlets at 1500-2500 PSI, enabling smooth control of the finger disks’ lifting and lowering. The working dimensions of 7600×6800×1500 mm and structural weight of 1200 kg contribute to stability without compromising maneuverability. With 12 finger disks and 720 tines (60 per disk), it achieves a missed raking rate of no more than 2%, ensuring thorough collection. Productivity reaches 4.2-6 hm²/h at working speeds of 7-10 km/h, while transport speed up to 18 km/h facilitates quick relocation between fields.

In application areas, this forage rake excels in pasture management, where it flips and aerates hay to accelerate drying, reducing mold risk and improving feed quality. For straw handling in grain crops, it forms uniform windrows of 800-1400 mm width, preparing for subsequent baling. The single-operator design minimizes labor needs, making it ideal for small to medium farms. Qualifications include compliance with international safety standards and durability testing, with a warranty of 2 years for structural components and 1 year for others. Tire sizes of 10.0/75-15.3 rear and 7.5L-15 front enhance traction on varied terrain, while the 12V DC electrical system integrates seamlessly with tractor power.

Key Features and Functional Innovations

The finger wheel rake’s structural innovations include hydraulic-controlled disk elevation, allowing operators to adjust height for different crop densities and ground contours. This best finger wheel rake for small farms feature ensures even raking without soil contamination, promoting healthier regrowth. The trailed linkage provides flexibility, reducing tractor strain during turns and enabling a compact transport mode. Number of operators limited to one underscores its user-friendly design, with intuitive controls that require minimal training. In terms of functionality, it not only rakes but also tedds, spreading material for better airflow and faster drying, which is crucial in humid climates.

Details like the 12 finger disks arranged in a V-formation optimize gathering efficiency, while the 720 tines made from high-strength steel resist bending and wear. As a durable finger wheel rake for alfalfa, it handles delicate legumes gently, minimizing leaf loss that could affect nutritional value. The windrow width adjustment from 800 to 1400 mm allows customization based on baler intake requirements. Productivity metrics demonstrate its capability to cover large areas quickly, making it suitable for commercial operations. Application domains extend to organic farming, where chemical-free drying is prioritized, and to conservation agriculture, preserving soil structure.

A case study from a Midwest USA alfalfa farm illustrates its effectiveness: during a wet season, the rake’s aeration function reduced drying time by 30%, leading to higher-quality bales and reduced spoilage. Another example in European wheat fields showed it integrating with balers to streamline harvest, increasing overall throughput by 20%. Qualifications encompass rigorous field testing and certifications for environmental compliance, ensuring low emissions during operation. The electrical system supports optional lighting for extended work hours, enhancing safety.

Product Details and Application Versatility

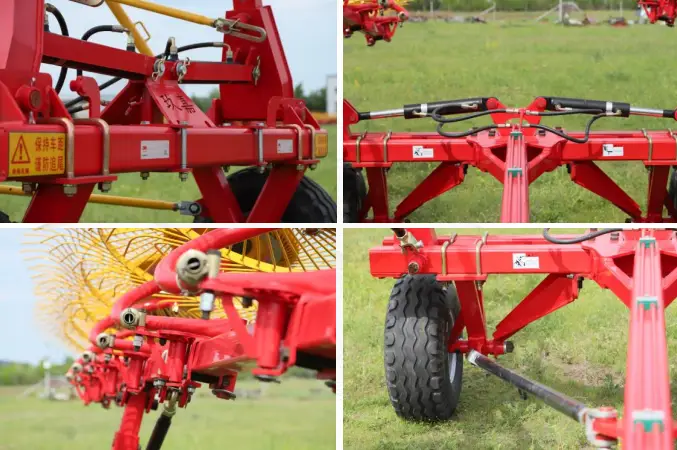

Delving into product details, the 9LZ-6.0’s finger wheel structure uses spring-loaded tines that flex to follow terrain, preventing damage and ensuring consistent performance. The trailed design distributes weight evenly, compatible with tractors featuring standard hydraulic outlets. For adapted machines, it pairs well with 35 HP or greater models, where the ≥25.73 kW power ensures smooth operation without overloading. Hydraulic flow at 1500-2500 PSI powers the lifting mechanism, allowing quick adjustments from the cab. Tire configurations provide flotation on soft ground, reducing compaction in sensitive areas.

Application versatility spans livestock feed preparation, where raked windrows facilitate baling for silage or haylage. In crop residue management, it aids in straw collection for bedding or mulch, supporting sustainable practices. For diverse climates, its robust build withstands wind and rain, with a missed raking rate ≤2% ensuring minimal loss. As an affordable finger wheel rake manufacturer, Netherlands Square Baler Co., Ltd. offers this model with options for tine replacements and frame reinforcements. Productivity of 4.2-6 hm²/h at 7-10 km/h speeds makes it efficient for time-sensitive harvests.

In a South American soybean operation, the rake’s wide coverage accelerated residue handling, improving soil health and next-season yields. An Asian rice paddy case demonstrated its adaptability, flipping straw without excessive disturbance. Qualifications include export certifications and durability ratings, with warranty covering key components. The single-person operation reduces costs, while transport speed ≤18 km/h enables easy movement between sites.

Netherlands Square Baler Co., Ltd.: Pioneering Agricultural Machinery Solutions

Netherlands Square Baler Co., Ltd. is a renowned agricultural rake supplier dedicated to enhancing farming productivity through reliable equipment. With a focus on innovation, our portfolio includes round hay balers for compact forage compression, square hay balers for rectangular baling, mowers for clean cutting, kidney bean pullers for specialized harvesting, round bale pickup and transport vehicles for efficient logistics, and feed crushers for nutrition processing. As a high-efficiency finger wheel rake for tractors provider, we ensure all products meet stringent quality standards, backed by ISO certifications and patents. Our commitment as a finger wheel rake for diverse climates expert extends to global support, making us a trusted partner for farmers worldwide.

User Feedback from Around the World

From New York: “This finger wheel rake picks up hay pretty well on my fields; it’s straightforward to use with my tractor, though adjusting in wet spots takes a bit.”

From Berlin: “I’ve tried the rake for straw; it forms even windrows, and maintenance is okay, but I check tines regularly in rough terrain.”

From Rio de Janeiro: “Using this for crop residues helps in humid weather; it doesn’t leave much behind, though transport between fields is simple.”

From Sydney: “The rake works fine on dry pastures; windrows are consistent, and it pairs with my baler without issues, just watch for dust buildup.”

From Johannesburg: “In dusty areas, this rake handles forage alright; productivity is decent, though I clean it often to keep performance steady.”
