9YG-2.24D Round Hay Baler(S9000) for Tractor

Overview of the 9YG-2.24D Round Hay Baler for Tractor

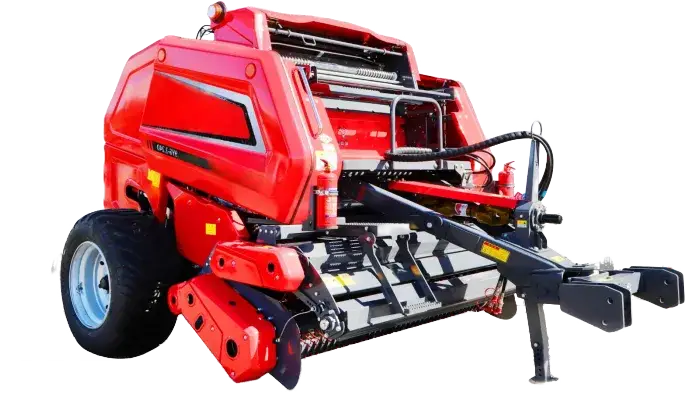

The 9YG-2.24D Round Hay Baler for Tractor, also referred to as the S9000 model, is a sophisticated piece of agricultural equipment engineered to streamline the process of compressing forage materials into compact bales. Manufactured by Netherlands Square Baler Co., Ltd., a renowned hay baler manufacturer, this machine excels in handling hay, straw, and other crop residues with precision and efficiency. Its towed hitching method facilitates easy attachment to a variety of tractors, making it highly adaptable for different farming scales. The pickup width of 2240 mm allows for wide swath coverage, capturing more material per pass to enhance operational productivity. With a tine-type pickup structure, the baler gently lifts crop from the ground, reducing soil compaction and preserving field integrity. The fork and roller type feeding mechanism ensures a steady flow of material into the compression chamber, preventing jams and maintaining consistent throughput.

The roller-type compression baling mechanism, featuring 18 rollers each with a diameter of 222 mm, delivers uniform bale formation across a compression width of 1400 mm and diameter up to 1200 mm. This results in bales measuring Φ1300 × 1400 mm with densities ranging from 100 to 200 kg/m³, controlled precisely through sensor technology. The net wrap bale tying method secures the bales effectively, protecting them from environmental elements and ensuring longevity during storage. Requiring matching power of 55 to 100 kW, the baler operates at a power output shaft speed of 720 r/min, achieving impressive productivity of 40 to 100 bales per hour at working speeds between 5 and 35 Km/h. Its structural mass of 4262 kg and wheelbase of 2600 mm provide stability on varied terrain, while the overall dimensions of 4240 × 3010 × 2450 mm in working state offer maneuverability without compromising performance. The net wrap specification of 2000 × 1.4 m per bale optimizes material usage, contributing to cost savings.

Advanced Features and Functional Innovations

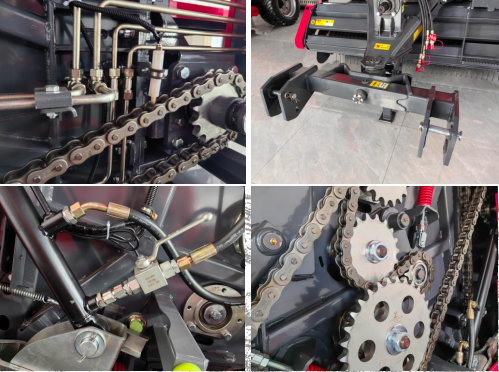

As a high-density baler, the 9YG-2.24D incorporates a rear compartment with dual-side 20A heavy-duty chains, which significantly increases compression pressure. This design allows the round bales to achieve densities that can reach 500 to 1000 pounds, meeting diverse customer demands for robust and compact forage storage. The novel traction device, boasting a maximum torque of 1000 Nm, features adjustable tilt angles with a lateral steering angle of 100° and a maximum tractor lateral tilt limit of 30°. This innovation addresses limitations in existing towed round balers, where traction devices are restricted to horizontal adjustments, unable to accommodate tilt angles that impact operational effectiveness and progress. By enabling flexible adjustments, it enhances adaptability to uneven terrain, reducing downtime and improving overall work efficiency.

The sensor control for bale density ensures real-time monitoring and adjustments, optimizing bale quality based on crop type and moisture levels. This feature is particularly beneficial in applications like round hay baler for alfalfa harvesting, where uniform density preserves nutritional value. The electrical system operates on 12V DC with a simple tractor battery connection, minimizing setup complexity. Tire sizes of 15/55-17 rear and 11L-15 front provide excellent traction and durability across fields. Hydraulic requirements include standard 2-3 outlets at 2000-3000 PSI, ensuring compatibility with common tractor systems. For compatible tractor models, this net wrap baler pairs seamlessly with mid-range units such as the John Deere 5E Series, Case IH Farmall, or Massey Ferguson 4700 Series, which deliver the requisite 55-100 kW power without modifications. These models support the baler’s towed design, allowing smooth operation at varying speeds and terrains.

Product Details, Applications, and Qualifications

Attention to detail in the 9YG-2.24D includes the dual-linked gearbox that rotates 90 degrees left or right, reducing turning radius and maintaining continuous power during maneuvers. This enhances transmission efficiency and lowers driver fatigue. The rigid connection between the gearbox and traction frame boosts stability on undulating ground, preventing damage to components. In terms of qualifications, the baler holds ISO9001 certification, ensuring adherence to international quality standards, and multiple technical patents protect its innovative features like the heavy-duty chain system and adjustable traction. These credentials underscore Netherlands Square Baler Co., Ltd.’s commitment as a reliable round baler supplier to delivering high-performance equipment.

Application areas span livestock farming, where compressed bales facilitate efficient feed distribution, and crop residue management for bedding or biofuel. For high-density round hay baler for large fields, it processes vast swaths quickly, while in diverse climates, its robust build withstands humidity or aridity. The machine qualifies for agricultural subsidies in various regions, adding economic value. Extending its utility, the baler integrates with other tools like mowers for pre-harvest preparation or feed crushers for post-baling processing, creating a comprehensive forage system.

Real-World Performance Through Case Studies

In a case study from a dairy farm in the Midwest United States, the 9YG-2.24D Round Hay Baler for Tractor was implemented for alfalfa harvesting. Attached to a John Deere 5E Series tractor providing 75 kW power, it achieved densities of 150 kg/m³ across 50 hectares, producing 80 bales per hour with net wrapping that preserved moisture content. This resulted in 20% reduced storage needs and improved feed quality, as the sensor control adapted to varying field conditions. Another example in European wheat cultivation involved pairing the baler with a Massey Ferguson 4700 Series at 90 kW, where the adjustable traction device navigated hilly terrain at 25 Km/h, yielding uniform straw bales for biofuel. The heavy-duty chains ensured compression pressures that minimized waste, boosting efficiency by 15%. In a South American corn residue operation using a Case IH Farmall tractor, the machine’s 100° lateral steering angle facilitated quick turns, processing 60 bales per hour in humid environments without traction issues, enhancing overall progress.

About Netherlands Square Baler Co., Ltd. and Our Diverse Product Offerings

Netherlands Square Baler Co., Ltd. is a distinguished hay baler manufacturer dedicated to advancing agricultural technology with a focus on reliability and innovation. Operating from a 40,000-square-meter facility equipped with over 200 advanced tools and supported by more than 260 professionals, we hold ISO9001 certification, AAA-level credit, and numerous patents. Beyond our core round hay baler for tractor models, our lineup includes mowers for precise field cutting, rakes for efficient windrowing, square balers for rectangular compression as a durable square hay baler supplier, kidney bean pullers for specialized crop handling, round bale pickup and transport vehicles for seamless logistics, and feed crushers for optimal livestock nutrition. This comprehensive range positions us as a versatile agricultural baler supplier, catering to global needs with affordable and high-quality solutions.

• From New York: “This round hay baler fits my alfalfa fields okay; the density is steady, but hitching takes a bit in wet soil.”
• From Berlin: “Used their high-density round baler for wheat straw; it’s simple to run, though parts availability could be quicker in remote areas.”
• From Rio de Janeiro: “The durable round baler handles corn stalks fine with my tractor; efficiency is decent in rain, but net wrap adjustments help.”
• From Sydney: “Affordable round baler works for grass hay on my pasture; bales are tight, though turning in dry spots needs practice.”
• From Johannesburg: “This net wrap baler tackles dust for feed; compression is even, but pairing with crushers makes routines easier.”
